XBOARD QS supports QMK, enabling you to freely utilize VIA, Remap, SignalRGB, and Vial functionalities.
- You cannot use these four programs simultaneously.
- Please install and use only one firmware corresponding to the program you wish to use.
- Using multiple firmware corresponding programs simultaneously may result in key malfunctions and conflicts.
- When using VIA or Remap, please make sure to close SignalRGB program completely (including background processes) before usage.
- To use VIA, download the XBOARD JSON file from the Download page and follow the installation steps below.
Supported Firmware
a. VIA (Remap) Firmware
b. Signal RGB + VIA (Remap) Firmware
c. Vial Firmware
Please visit Pulsar DOWNLOAD CENTER to download above firmware.
1. To update the firmware, install the Firmware Update Toolbox.
2. Download and run the 'qmk_toolbox_install' and 'Firmware' files from the Pulsar website Download page.
3. Click on [OPEN] to open the downloaded firmware file.

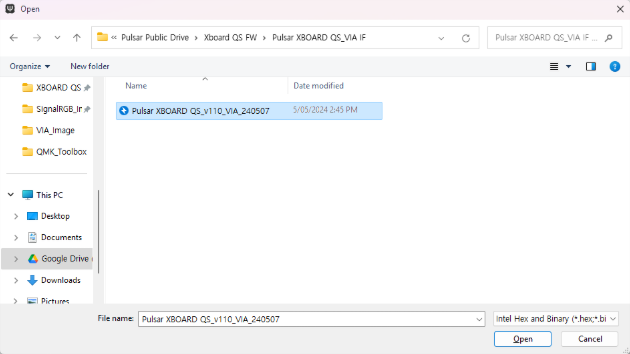

- VIA User

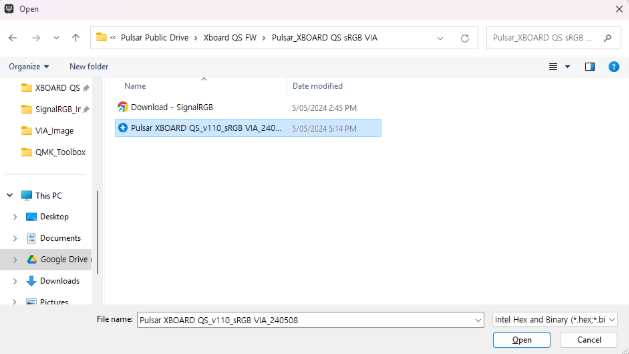

- SignalRGB User
- Vial User
4. Disconnect the USB cable connected to the XBOARD QS, then reconnect it to the USB Host 1 Port while holding down the "U" key.

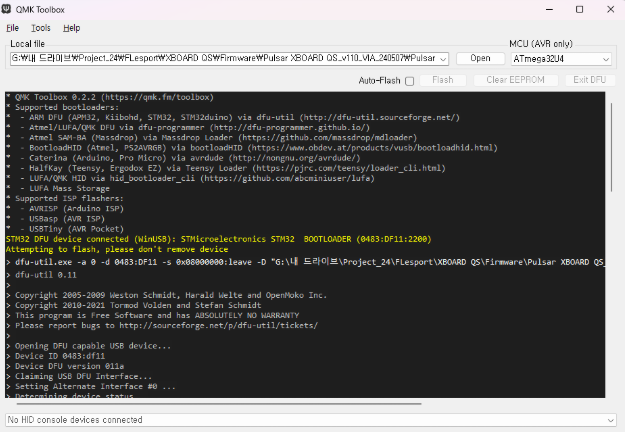

Once the "STM32 DFU Device Connected" message appears, you have entered the firmware update mode.
5. Press the [Flash] button when it becomes active.

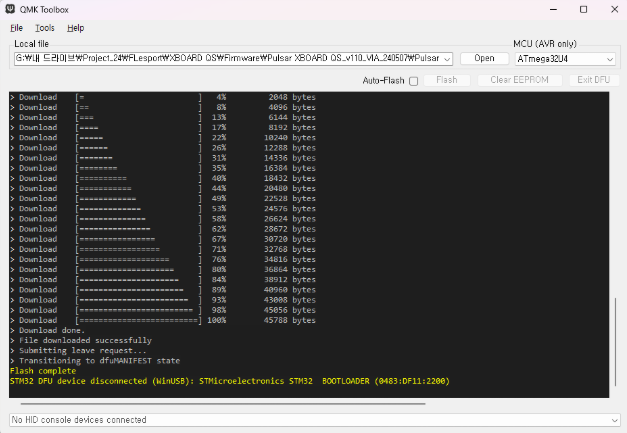

6. Once "Flash complete" appears, reboot the keyboard.
7. Firmware update is complete! 🎉
